Brand Name : Strauss & Co.

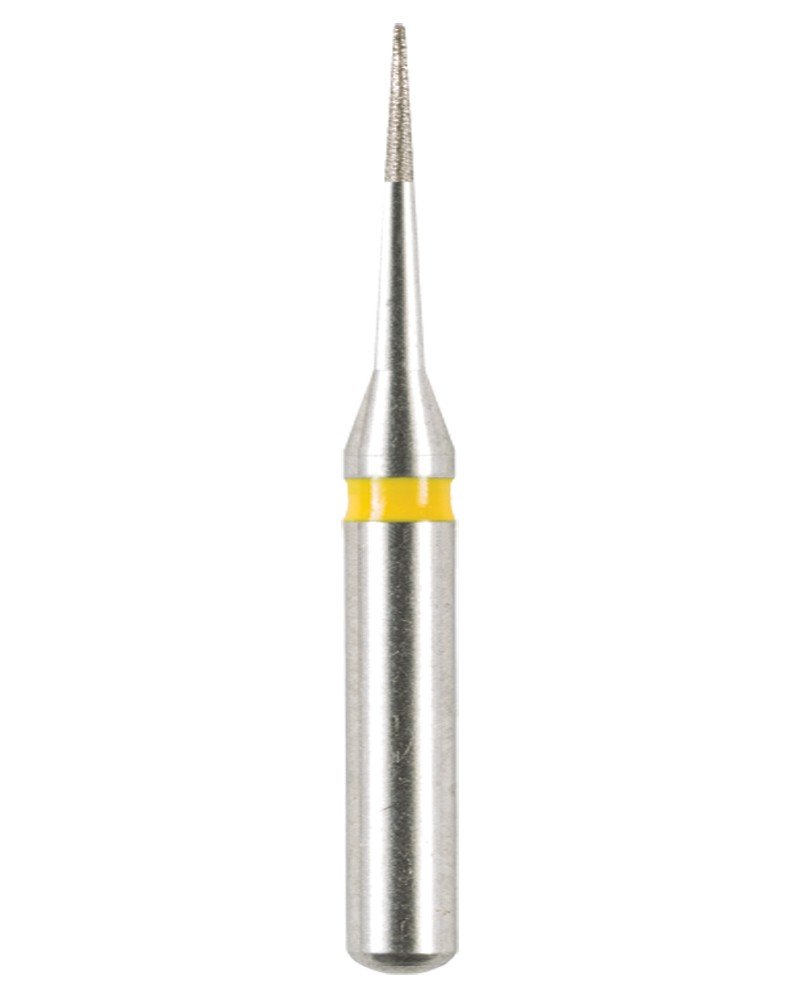

Product Name : Needle IPR Diamond Bur 0.45 mm Super Fine
Grit : Super Fine (SF)
Grit Size : 30 μm
SF IPR Range : 0.20–0.45 mm
Maximum SF IPR : 0.45 mm
Head Length : 3.4 mm
Total Length : 22 mm
Shape : Needle
Designer : Dr. Yoav Mazor
Product Description
- Strauss Z12S/SF Needle IPR Diamond Bur is designed for controlled interproximal reduction (IPR) in orthodontic procedures.
- The Z12S Super Fine (SF) configuration provides an IPR range from 0.20 mm minimum to 0.45 mm maximum, according to the Strauss catalogue.
- Its slender needle-shaped working profile provides access to interproximal contact areas.
- Designed by Dr. Yoav Mazor.
- The special diamond coating is intended to support controlled enamel reduction.
- Working according to the tooth axis is important for helping prevent uneven or angled reduction and for maintaining better visibility of the working area.
- The bur has a 3.4 mm head length and 22 mm total length.
- Strauss identifies Super Fine diamond burs with a yellow colour ring and specifies a 30 μm grit classification.
Features
- Maximum SF IPR: 0.45 mm
- SF IPR range: 0.20–0.45 mm
- Super Fine diamond grit
- Needle-shaped orthodontic bur
- Designed for controlled IPR
- Designed by Dr. Yoav Mazor
- Head Length: 3.4 mm
- Total Length: 22 mm
- Yellow colour coding for Super Fine grit
Material & Care
- Diamond-coated working surface on a precision stainless-steel blank.
- Strauss states that its FG diamond burs use hardened Swiss-made stainless-steel blanks, designed for maximum precision and minimum vibration.
- Clean, disinfect and sterilize according to the manufacturer's instructions for dental rotary instruments.
- Inspect the bur before use for wear or damage.
- Use appropriate clinical pressure and maintain alignment with the tooth axis during IPR.
Z12S/SF vs Z12S/PF
1. Minimum IPR - Z12S/SF : 0.20 mm, Z12S/PF : 0.30 mm
2. Maximum IPR - Z12S/SF : 0.45 mm, Z12S/PF : 0.50 mm
3. Head Length - Z12S/SF : 3.4 mm, Z12S/PF : 3.4 mm
4. Total Length - Z12S/SF : 22 mm, Z12S/PF : 22 mm
