Brand Name : Strauss & Co.
Product Name : Needle IPR Diamond Bur
PF IPR Range : 0.30–0.65 mm
Maximum PF IPR Diameter : 0.65 mm
Head Length : 7 mm
Total Length : 23.5 mm
Shape : Needle
Coating : Diamond
Application : Orthodontic Interproximal Reduction (IPR)
Designer : Dr. Yoav Mazor
Product Description

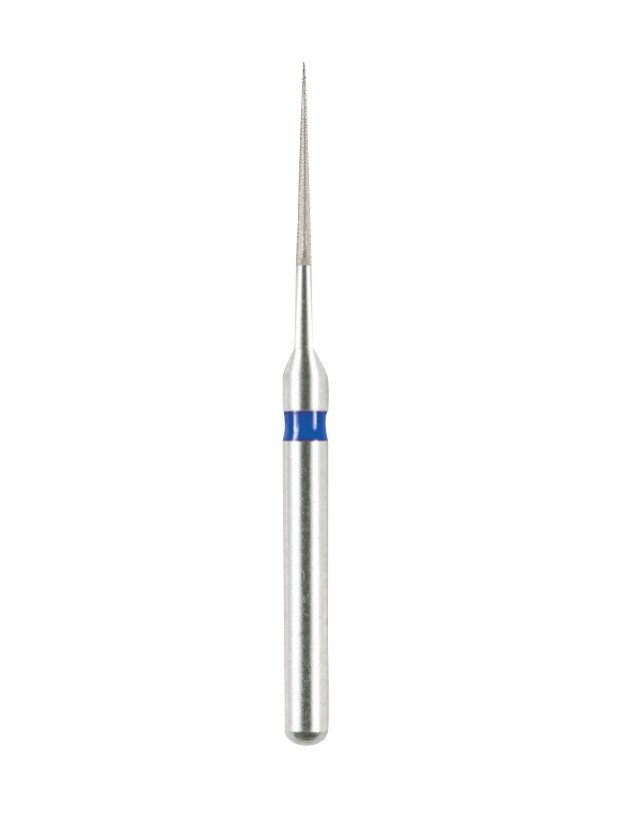

- Strauss E11S/PF Needle IPR Diamond Bur is designed for controlled interproximal reduction during orthodontic procedures.
- Designed by Dr. Yoav Mazor.
- Features a specialized needle-shaped working profile for precise access to interproximal contact areas.
- The PF version provides an IPR diameter range of 0.30 mm minimum to 0.65 mm maximum, according to the Strauss catalogue.
- Strauss lists the E11S as code 852-005, ISO No. 164-005, with a 7 mm head length and 23.5 mm total length.
- Its special diamond coating is designed to help prevent micro-fractures in tooth enamel during IPR.
- Working according to the tooth axis is important to help prevent uneven or angled reduction and provide better visibility of the working area.
- Strauss states that its orthodontic burs are 100% controlled to assure quality, efficiency and durability.
Features
- Needle-shaped orthodontic IPR bur
- PF IPR range: 0.30–0.65 mm
- Designed by Dr. Yoav Mazor
- Special diamond-coated working surface
- Designed for controlled enamel reduction
- Helps achieve precise interproximal access
- 7 mm head length
- 23.5 mm total length
Material & Care
- Diamond-coated working surface on a precision stainless-steel bur blank. Strauss states that its FG diamond burs use hardened Swiss-made stainless-steel blanks for precision and reduced vibration.
- Clean and sterilize after each use according to Strauss dental-bur reprocessing instructions. Work with controlled pressure and follow the tooth axis during IPR. Inspect the bur for wear or damage before use and store clean and dry.
Applications
- Orthodontic interproximal reduction (IPR)
- Controlled enamel reduction
- Creating interproximal space
- Contact-point reduction
- Interproximal contouring and finishing
- Precise reduction along the tooth axis
